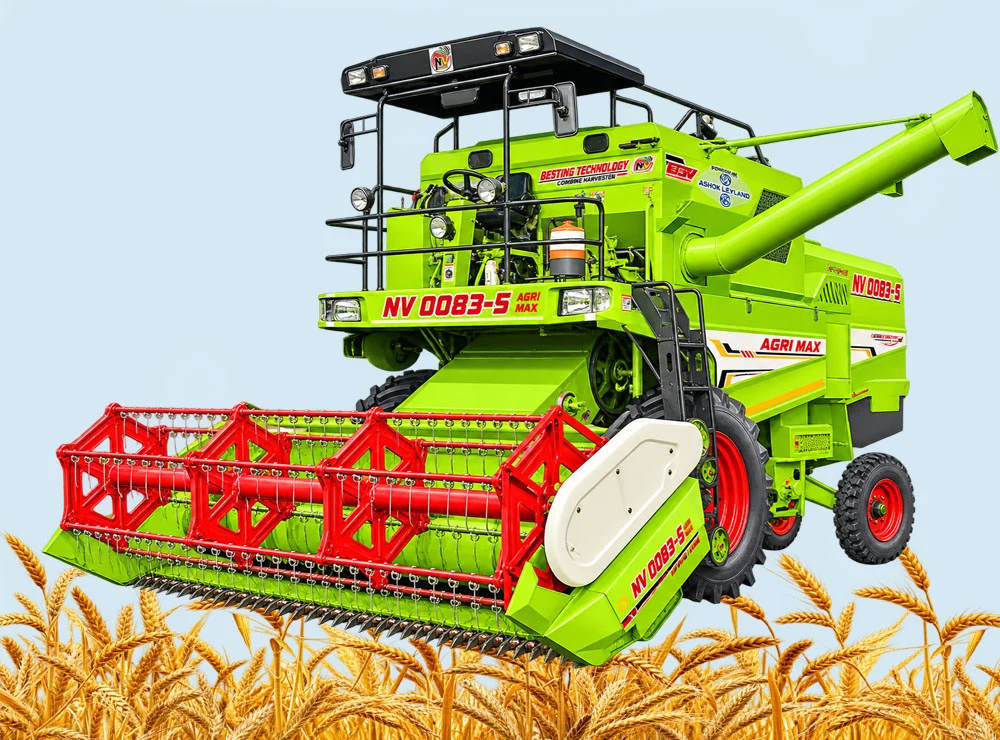

Self Propelled Combine Harvester

Self Propelled Combine Harvester

Key Features & Working

Heavy Duty Engine

3 Forward an 1 reverse gear which makes combine more efficienct

Better cutter bar width for high performance in less time Heavy duty gear box

Heavy duty disc break

Crystal combination headlights

Self Propelled Combine Harvester manufacturers

New Vishavkarma Agriculture Works, Malout, Punjab, is engaged in manufacturing and exporting heavy-duty Agrimax wheat harvesting combines, self-propelled combine harvesters, and multi-crop combine harvesters. Built for tough field conditions, these machines deliver high productivity and need minimal maintenance.. These Heavy duty machines give high productivity and require low maintenance. [Get a Free Quote] [Call Now: +91 94633 83632

A multicrop thresher is an agricultural machine that separates grain from harvested crops, and one machine can handle many crop types. Our back feeder axial flow multicrop thresher uses an axial-flow drum to thresh crop efficiently, with a rear-loading feeding platform (back basket) that makes feeding safe, smooth and continuous. Instead of buying a separate thresher for each crop, you can use one multicrop thresher across the whole season. This saves money, space and time.

Techenical Specifications of Combine Harvester - NV 0083-S- Agrimax

EngineAshok Leyland
Power133 HP At 2300 RPM
NO. OF CylinderSIX
Air CleanerDry
Ccooling System Water Cooled
CUTTER BAR
Width (MM)4345
Cutting Height (MM)100-700
THRESHER MECHANISM
Width (MM)1270
Thresher Drum Dia (MM)610
Speed (RPM)535-1200
Speed AdjustmentBy Means Of Mechanical AviatorR
BATTERY
NO. Of Battery2
Capacity & Rating of Each24 V
Transmission / Drive
NO. OF Gears3 Forward, 1 Reverse
Gear Speeds (KM/HR)Low To High
MAIN DIMENSIONS
 In Working  |  in Transport
Length (MM) 7240   |   12550
Width(MM)3070
Height (MM)3880
CLEANING SIEVES
Upper Sieves (L X B)62" X 47" / 26" X 47"
Lower Sieves (L X B)62" X 26"
Fuel Tank (LTR)350
TYRE SIZE
Front18.4-30-14 PR
Back9.00-16 PR
Ground Clearance (MM)450
Weight Overhall (KGS)9555 (APPROX.)
Grain Tank Capacity (KGS)1200-1500
